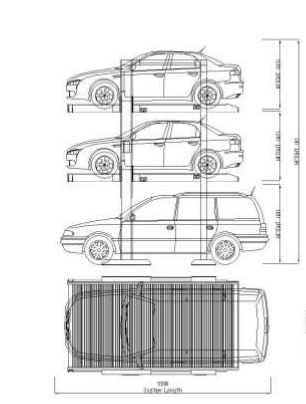

This is a Four Post Three level Stack Parking Systems in Mumbai where one car is parked on ground level and one on first level. This has pillars only on one side for the Parking System, which makes manoeuvrability on the site easier. The Car on the ground level will need to be moved out before parking for removing the car on the raised Platform. Because of the effective technique used by Stack Parking Systems, the driver get more space on ground to put the car in and out. This Stack Parking System in Mumbai is the most used Parking systems in Mumbai.

BENEFITS

•  Two platforms per system.

•  Four post structure system can be installed in door and out door.

•  Hot dipped galvanized floor pallets to reduce dead weight and increase durability.

•  Electromagnetic locking mechanism from start to end at each position..

•  Remote switch box with keys/push button for easy operation.

•  Dual height limit switches on each machine (extremely safe and reliable).

•  Can be customized to suit a client’s particular application.

General Specification:

•  Fully hydraulic based system.

•  Load capacity 2000Kg.

•  Standard dimension for the unit is L 5500 X W 2500 X H 6200.

•  Very less power consumption (1.5kw./2HP)

•  Lifting time 35-45 sec.

•  Key operated to prevent unauthorized use.

•  Totally enclosed Compact Power pack system.

•  Imported Quality hydraulic valve to operate the system.

•  24v DC. Control circuit is used to prevent any electrical shock.

•  Heavy fabricated structural work for long life.

•  Double coated Painted structural items.

•  Emergency Shutdown switch.
